Test Centre

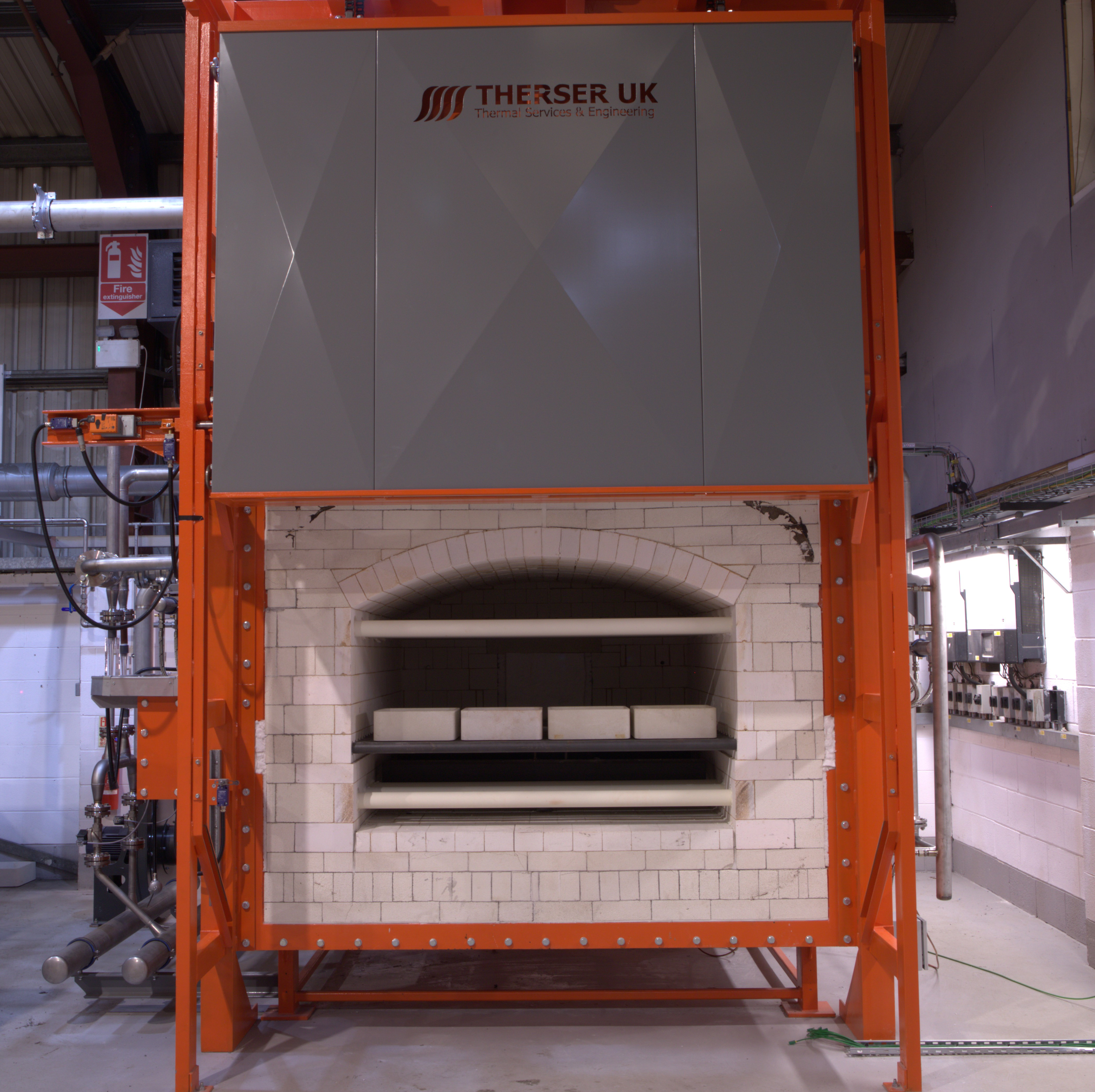

This is our large electrically fired test kiln, it can hold up to 32 saggars, it can provide 2 process gases. This has a big capacity for large items to be fired, with an afterburner.

It can be used for any materials you required to be fired, from tiles, ceramics, battery materials, slide gates, heavy clay.

Multiple firing available

Minute by Minute tracking of product through our Scada system. This can measure pressure, Gas used through our Mass Flow System, flow rate, power consumption.

Effective kiln width - 1320mm
Effective kiln length - 1920mm
Effective kiln height - 450mm
Effective kiln load - 367 kg/m²

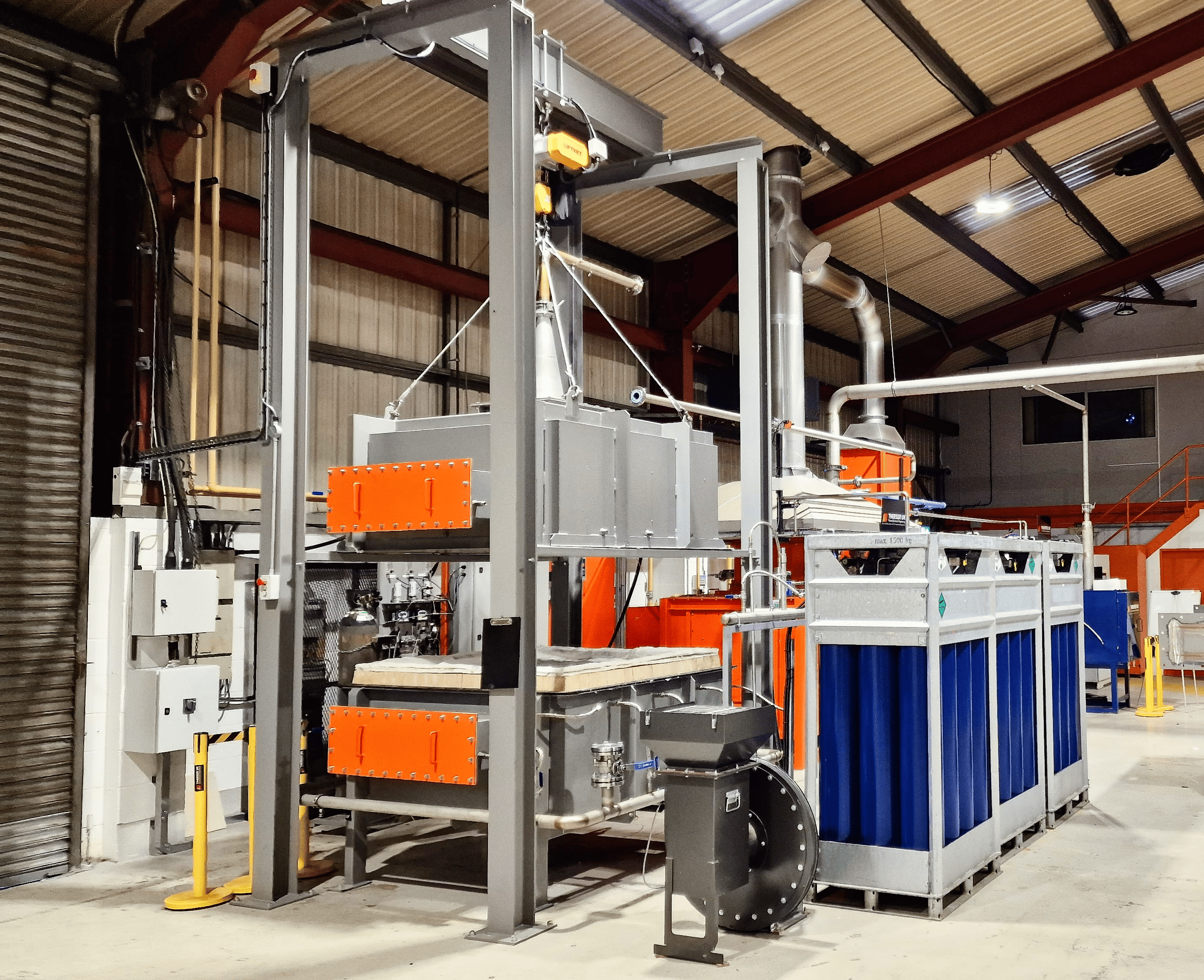

Therser’s medium sized test kiln, capable of holding up to 8 saggars of material. It doesn’t have to be in saggars dependent on what you want testing. Test can be done with an afterburner if needed.

Specification

Up to 8 saggars or equivalent product
Working Internal chamber Width 900mm
Working Internal chamber Height 300mm
Working Internal chamber Length 900mm
Top temperature 1250c
Process gases of your choice
2 Internal Thermocouples
Any Thermocouple product placement

Firing cycle of your choice
Most products can be fired
Atmosphere control chamber – Less than 30ppm
Scada/Specview data
Mass flow control
O2 analyser
Energy consumption report

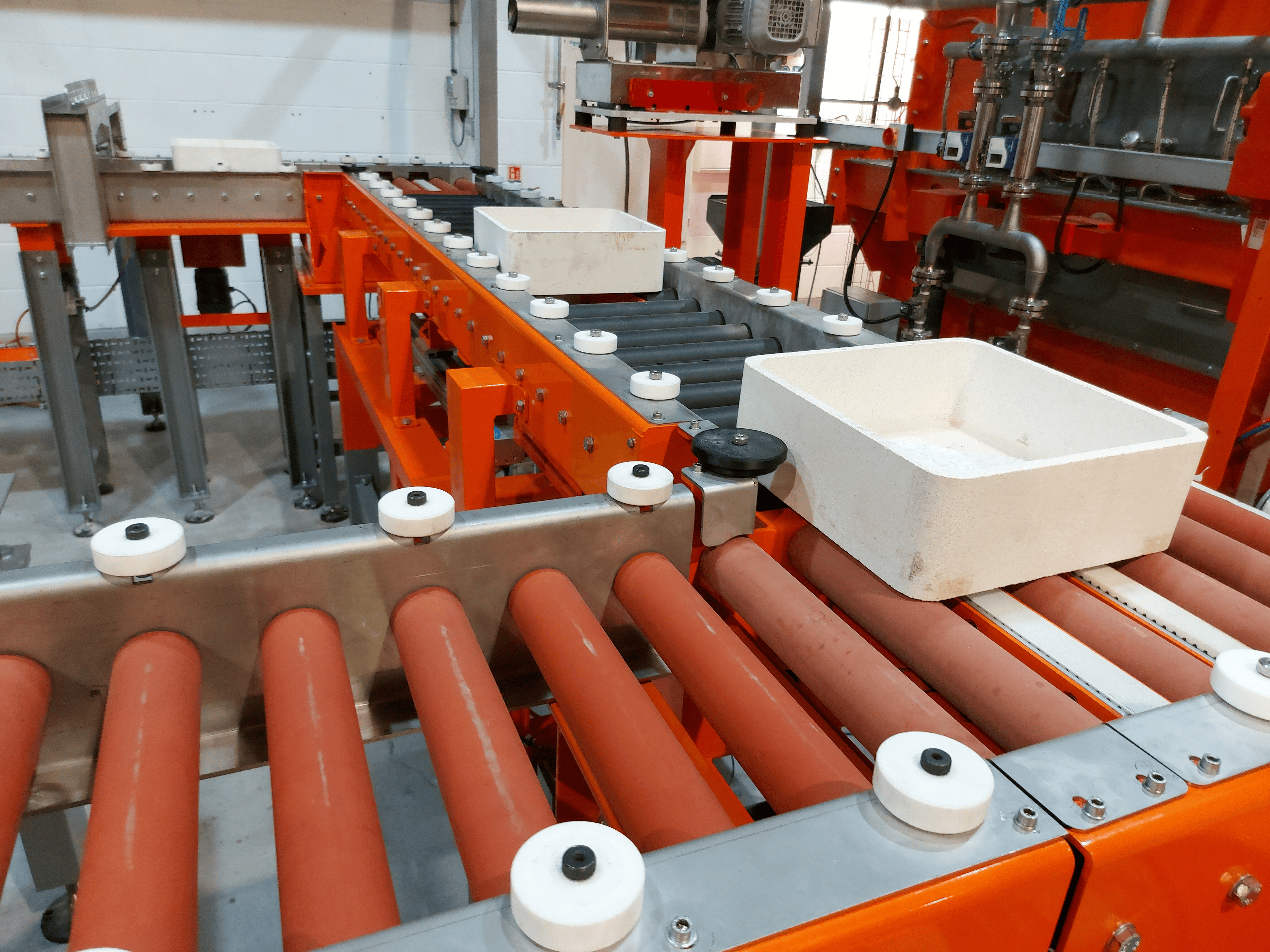

A saggar handling system is an integral part of industrial manufacturing, specifically designed to automate the movement and organization of saggars—specialized containers used to protect delicate materials during high-temperature processes such as kiln firing. Comprising conveyors, robotic arms, or automated machinery, this system efficiently loads, unloads, transports, and positions saggars throughout production stages. Its primary role is to ensure the safe handling and precise positioning of saggars, safeguarding the contents within from damage or contamination. By streamlining these processes, the system enhances efficiency, reduces manual intervention, and maintains consistent quality in manufacturing, contributing significantly to the protection and integrity of materials during industrial procedures.

Why Choose Therser For Your Test Firing.

Use our knowledge expertise during the development and optimization of thermal processes
Optimize your production processes by performing tests among realistic conditions leaving you free to focus entirely on the development of your products
Continuous development and improvement of our products
Investment and reduction of operating costs by optimizing systems for a better-quality product
Risk reduction by pretests with original parts
Customer trial tests for optimising of products and processes
Building relationships throughout the process
